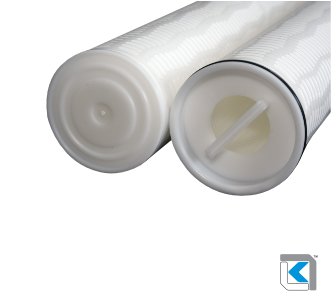

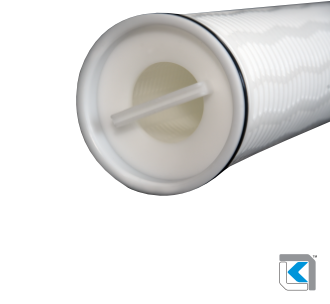

KGT Large Flow Filter


About

The KGT Large Flow filter is a large diameter filter having single open ended design with option of pleated and depth media.


The flow pattern is from the inside to the outside of the filter element. Special pleated structure with large diameter of 6 inches; with lengths from 20 inches up to 60 inches, the filter boasts of a capacity of up to 1500 lpm per cartridge.


The KGT Highflow filter is available in polypropylene and glass fibre to handle a wide range of liquids

Advantage

Due to large flow capacity, filter system can be designed up to 50% smaller footprint when compared to standard filter of 2.5” diameter and 40” length.


Each KGT Large Flow filter replaces upto 20 small diameter elements for the same flow.


Reproducible performance by virtue of absolute removal rating


Available in 10/20/30/40/60 inches length


All polymeric construction ensures minimal disposal costs.


The contamination is trapped within the filter due to inside to outside flow pattern, benefitting clean filter changeover.

DIFFERENTIAL PRESSURE DATA

For Normal Flow from Inside to Outside for liquids compatible with the filter media, the maximum differential pressure is

Polypropylene Medium: 36psid (2.5 bard) @750°C

Glass Fibre Medium: 36psid (2.5 bard) @1100°C

APPLICATIONS

Amine, Glycol


RO Pre-filtration


Process Water


White Fuels


Brine, Seawater


Naphtha, HC Condensate


KGT SMITMANN Cartridge Filter


About

The KGT SMITMANN Cartridge filter has a controlled pore structure enabling removal of large range of particle sizes with consistent efficiency.


Apart from the wide chemical compatibility, the filters are suitable for either high flow rate or high viscous liquid, having a high dirt holding capacity.


The KGT SMITMANN cartridge filter is available in various removal ratings enabling it to handle a wide range of fluids.

Advantage

Due to wide range of media and pore size selection, a variety of liquids from acids to alkalis; from seawater to process water; and lube oils to petroleum fluid.


Standard dimensions of 7” outer diameter ensures fitment in most standard housings with varied length availability. (other dimensions available on request)


Available in 16 and 32 inches length. (Other lengths available on request.)


Sealing collars available in polypropylene.

DIFFERENTIAL PRESSURE DATA

For Normal Flow from Inside to Outside for liquids compatible with the filter media, the maximum differential pressure is

Polypropylene Medium: 15psid (1.0 bard)@75°C

Glass Fibre Medium: 15psid (1.0 bard)@120⁰C

APPLICATIONS

Lube Oils


Process Water


Amine, Glycol


Brine, Seawaters
